Jitterbug Turned Taquete – It’s not just for 8 harnesses!

About two years ago I blogged about taking an overshot pattern called Jitterbug and converting it to an 8 harness Turned Taquete weaving draft. You can read all about that here. I don’t know why my mind wandered back to that, but I started wondering about how it would work on 4 harnesses. In her article “Turned Taquete: an Introduction” (*see below), Bonnie Inouye describes how it can be done by interleaving a four harness overshot threading with a second threading on opposites. I did not try this method, but I did decide to explore another method.

In her book Weaving with Echo and Iris Marian Stubenitsky suggests some ways to substitute blocks of four harnesses, each arranged in a different order, for the threading blocks in a design line. This means that each block will be switched for a four-thread sequence. Here is the substitution formula from page 71:

For Harness 1 we will substitute 1324

For Harness 2 we will substitute 3124

For Harness 3 we will substitute 3142

For Harness 4 we will substitute 1342

Other sequences of substitution in her book had issues. One could only be used on a rising design line, not descending. Another ended up with many double threads that needed to be deleted. This method had no problems and only the caveat that this threading rubric does not work with iridescent effects (four colors per block), but only with two alternating colors per block.

Off I went. First I re-wrote the design line to the minimum (keeping in mind that it would be expanded by 4x):

screen-shot-2017-02-17-at-11-36-38-am

FYI– this is what it looks like with two repeats of the threading and treadling:

screen-shot-2017-02-17-at-11-38-03-am

This is one repeat of the threading draft after four-thread substitutions are made:

Jitterbug Threading

And this is one repeat of the threading draft with the tie-up and one repeat of the treadling draft, which includes tabby on alternating picks:

screen-shot-2017-02-17-at-11-59-56-am

The longest floats are 4 threads according to Fiberworks, which should be fine for most close sets. So, lest you four harness weavers should feel left out of the Turned Taquete craze, this is a perfectly serviceable technique to join in the fun. Enjoy!

*The complete article can be found here: Complex Weavers Journal, June 2014, pp 36-40.

De-Stashing (again)

circles-scarfI finished the black and white Turned Taquete Circles scarfs, and this is the one that I am keeping. It’s on the short side, and I haven’t ruled out whether to turn it into a cowl. A seam would shorten it even more, and it’s currently holding at 35″ not counting fringe.

If I do turn it into a cowl, I’m considering using the technique for seaming used by Sarah Jackson in Handwoven with her Diversified Plain Weave Dancing Circles Scarf that she designed for the Thick and Thin issue (November/December 2016). BTW, my DPW Circles Scarf (Handwoven, May/June 2013) was a resource! And I have another short piece of chenille that I can practice on first, so still mulling that one over.

Meanwhile, I decided to go for color and circles in a big way. I dug into my stash of 1450 ypp rayon chenille and came up with lots of balls of hand dyed chenille leftovers from a multitude of other chenille scarf warps.

I’m using a medium gray for neutral contrast. Here’s the stash after already winding one two-scarf warp:

chenille-1

Here’s the stash after winding two two-scarf warps:

chenille-2

And here’s the stash after winding three two-scarf warps:

chenille-3

That would be six scarfs warped. Then I weighed what was left, and it is still over a pound! Arrrgh!

Circles 3.0: Color and Stripes!

I just finished the first Turned Taquete Circles warp, and I managed to eke out two scarves after all that sampling. One is a bit on the short side, so I guess I’ll save that one for moi. I enjoyed the monochrome project, so different for me, but I found myself plotting how to add color this draft. And lots of it. And fast.

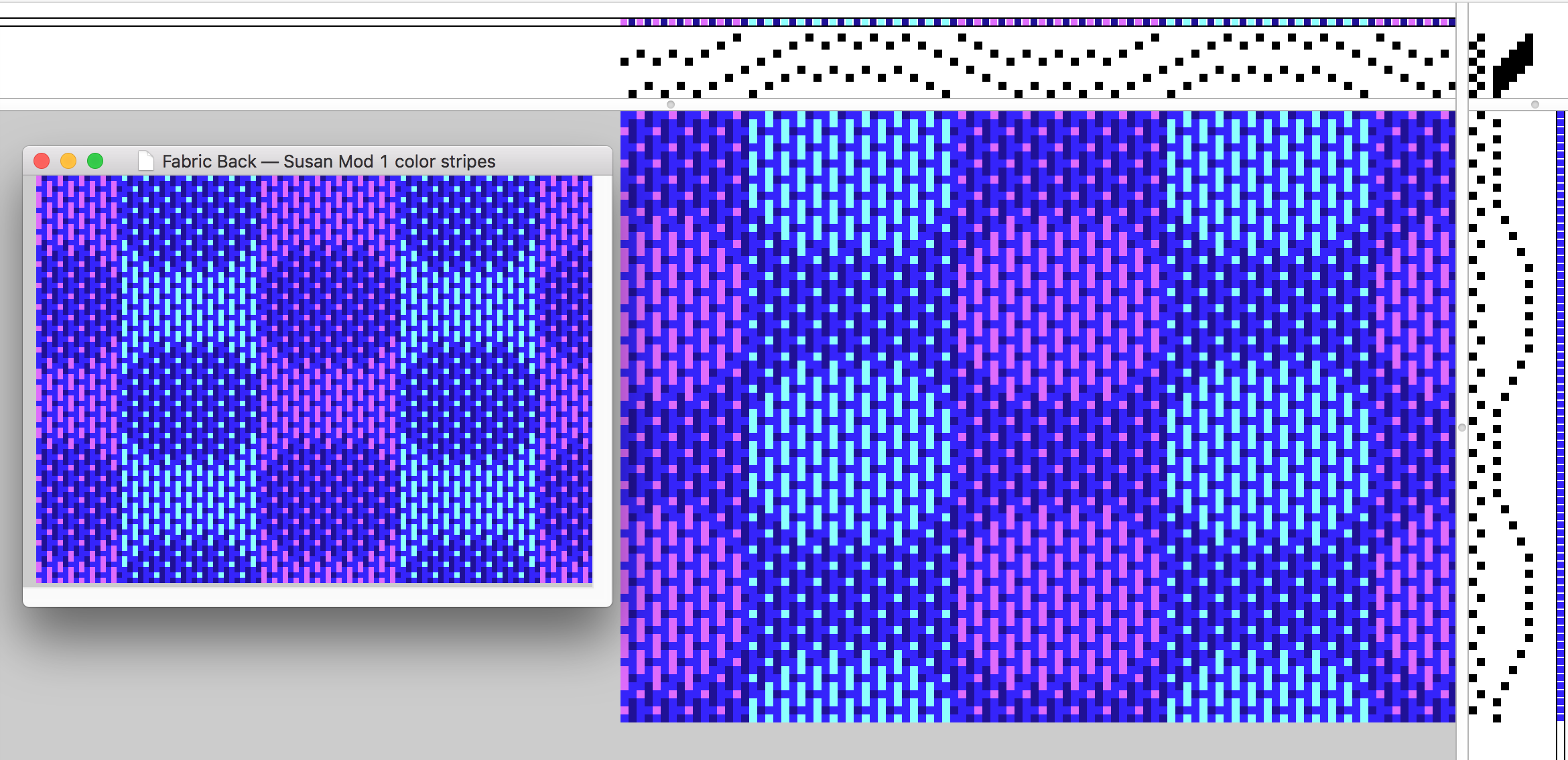

susan-mod1-color-stripes

As you can see from this screen shot, the circles are distinctly separate (barely) in the vertical columns, but just a bit overlapping in the horizontal columns. (I’ll have to work on that.) That means that I can change colors vertically, thus adding a whole bunch of interest with very little effort. I’m not sure I would want to change colors in the weft. I rather like weaving with only one color to think about in the shuttle.

Now. Time for a glass of wine.



And we have a winner!

I am not a sampler. But I sampled. And, well, the apocalypse didn’t come. The sky didn’t fall. And it was a good experience. I learned stuff, and I am now ready to weave some Turned Taquete Circles scarves.

I started out with 1450 ypp rayon chenille set at 16 epi. In this photo the bottom sample is woven with 1450 ypp black.

16epiblack

The next photo is the top portion of the same 16 epi sample, but woven with 2000 ypp white. I was playing with the treadling, elongating the middle, anticipating that with the release of tension and wet finishing, that the ovals would shrink to circles.

16epiwhite

Then I resleyed to 18 epi. And I wove two samples with the same wefts, 1450 ypp black and 2000 ypp white. Again I elongated the middles of the circles pre-wet finishing.

18epiblack

18epiwhite

I don’t have a picture of these post-wet finishing, but, trust me, they didn’t shrink as much as I would have anticipated. They remained pretty much as ovals.

So, then I resleyed to 20 epi and changed my reed to a 10. I was tempted not to do it. I was busy with Christmas prep, and I didn’t have a bunch of time. But. I did it anyway!  And lo and behold it was the right thing to do.

So I wove this last sample with the same black and white wefts, this time greatly abbreviating the treadling of the middles of the circles. Keep in mind that the circles became thinner as I resleyed. So the treadling of the middles became shorter and shorter.

20epiwhite

20epiblack

This is a photo of the sample post-wet finishing.

20epiboth

And the bottom sample is the winner.  Even after wet finishing the shrinkage wasn’t much. I find I prefer the hand of the 1450 ypp rayon weft.

Below you will find the now-revised-yet-again Turned Taquete Cirlces draft.

I optimized the tie-up. Originally, there were nine treadles tied, but two were tied to the same harnesses. That’s two too many for me when I have to crawl around on the floor. So that meant that the treadling sequence had to be revised, which I have done as well.

This is the best yet!

susan-mod-2

Wif files available upon request.

Circles Draft Scarves: Monochrome

Okay, this is how it’s going to go down. I am warping for a small batch (two) of Turned Taquete Circles Scarves, and using yarn on hand (how else?). I decided to go with rayon chenille because it’s easy. I don’t want to wind a warp that’s 60 epi. Au contraire, I’m starting this at 16 epi and will be sampling from there. This is 1450 ypp chenille, and my normal epi for that is 16. I am prepared to go up to 20, but we’ll see how it goes. I have weft of the same size, and I also have weft that is 2000 ypp, which would probably be recommended for drape.

Shockingly enough, I will sample with both!

Circles Scarf on the warping reel

This is the draft I’ll be using, including color choices. I decided to go full on monochrome, just black and white. My next warp will have color added. This time, I wanted the most contrast I can get, and besides, I like black and white dots.

Circles Scarf Weave Draft

In other news, I have a batch of Turned Taquete towels off the loom and ready to finish:

Turned Taquete New Batch

Dishtowels off the loom – group portrait

This warp is my standard dishtowels warp: 10/2 cotton sett at 32 epi. 20 inches wide, and woven as close to 30″ long as possible, not counting hems which are another 1 1/2″ each. I say 10/2 cotton is my standard, but as soon as I use up my 10/2 stock, I think I will be switching to 8/2 cotton.

8/2 cotton seems to be a more standard material for dishtowels these days. Plus it’s somewhat less expensive. Can’t argue with that.

So, here are some close-ups just for fun:

Turned Taquete Dishtowel ZoomTurned Taquete Dishtowel ZoomTurned Taquete Dishtowels Zoom

I took these shots with my new iPhone, and I have to say that these photos would stand up to my Nikon SLR any day. Just sayin’…

Whipping Up a Fresh Batch of Dish Towels

This is a quick shot of the first of my new batch of dish towels on the loom. I'm using my tried and true Turned Taquete technique, but as usual I didn't think it through.

I had planned for a checkerboard effect with the taupe/gray background and multicolor checks. I warped the gray areas in the solid color with no contrast. And I had hoped to isolate the color squares with gray all around. But. To do that, I needed to alternate gray/color/gray/color. Instead, I alternated color/color.

This makes for a nice variety of colors overall, but my intended result is not happening.

I am getting better at using my new warping reel, though. So that's a good thing. And the winding on went smoother for a change.

My next idea is to use this technique for placemats. I will probably order 5/2 cotton for the warp and sett it pretty close at about 24 epi I think. And maybe use 10/2 cotton for the weft. We'll see.

Turned Taquete, the Saga Continues

(This blog post was originally published March 17, 2014 on my first blog site, which is no longer in existence.)

So I’ve been moving quite slowly in the weaving department. A lot of life changes are happening Chez Iowaweaver. The husband retired at the end of 2013. My own retirement looms (ha! a pun!) at the end of June. Our house is our very own episode of Hoarders as my husband seeks to consolidate his office papers and books and regain a semblance of order and sanity.

The next episode of Turned Taquete was themed in greens and blues and I put on a warp for four towels using the threading draft I blogged about last time. See draft below. I had enough colors and ideas for treadling orders that I didn’t get bored, and the weaving actually went pretty fast.

Here are a couple of photos of the towels while still on the loom:

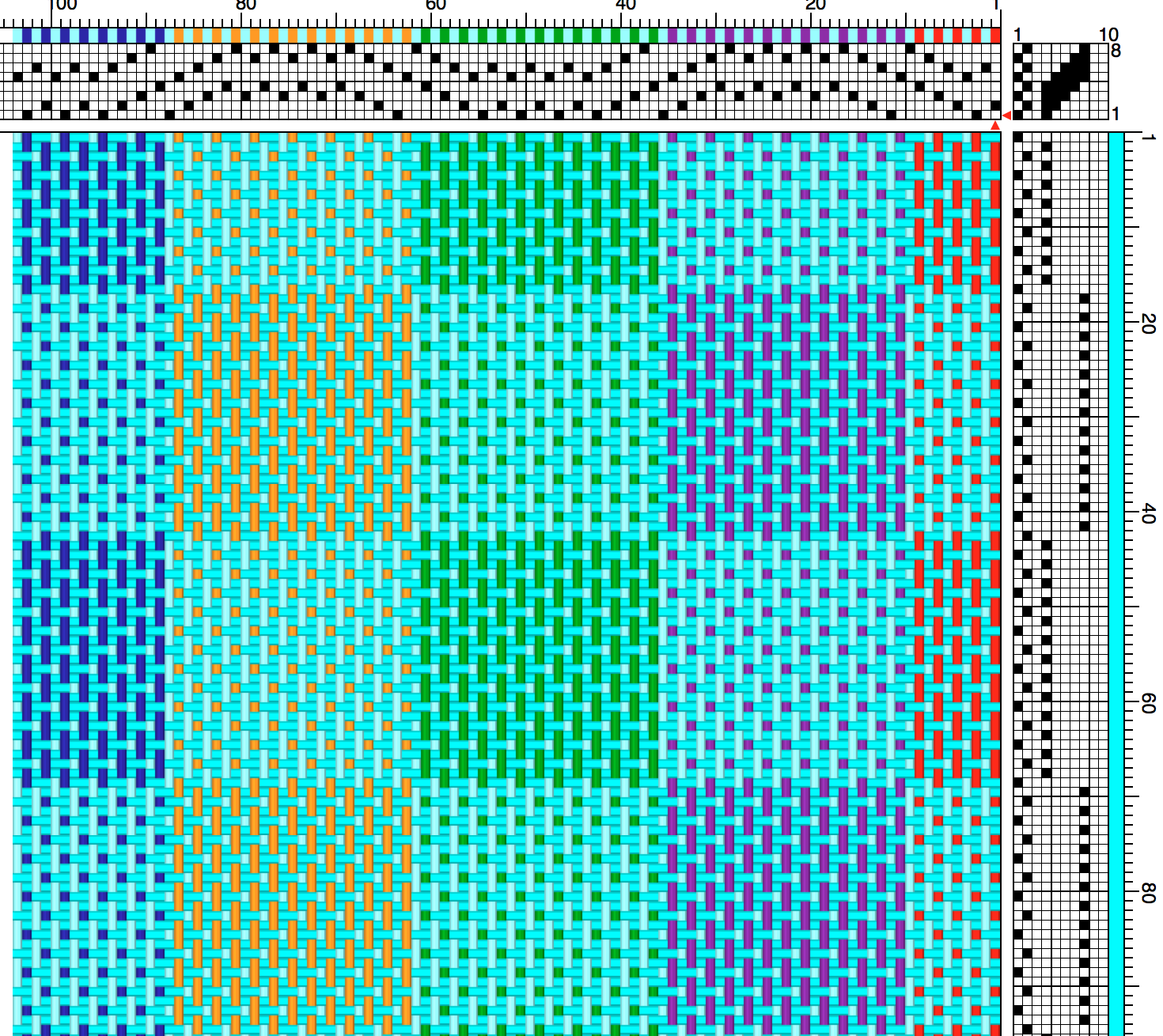

This is the weave draft. I sett 10/2 cotton 30 ends per inch. The warp was 20″ wide and I had five 4″ sections, so just imagine another section on the left to match the section on the right. 😉

Here is the towels’ group portrait:

And individual shots:

In other news, I’ve been dyeing sock yarn and other knitting yarn with fiber reactive dyes in the crockpot. This is a process that I got to know about three years ago, but didn’t pursue. But I like it lot! It is super easy. And I am going to continue with it more seriously, especially since I will have more time when I am retired. So, guess what I’ll be blogging about next time?
